LXQ-CAD

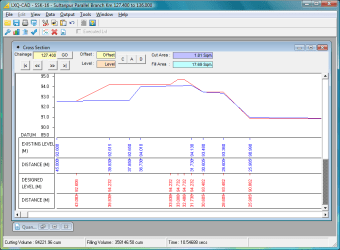

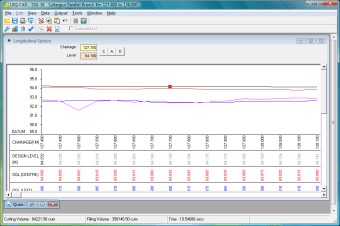

Developer's DescriptionBy Zion E-ServicesGenerate L Section, X Section, and Quantity report for any linear civil structure.LXQ-CAD is a simple tool to generate L Section, X Section drawings commonly used in civil structures L Section or Longitudinal Section is the side elevation taken along the entire length of any structure. The L Section can be generated on LXQ-CAD for virtually any type of linear structure. X Section or Cross Section is the front elevation of the road taken by cutting a vertical section on it. LXQ-CAD can generate X Section for all types of structures like Roads, Railway lines, Drains, Canals. LXQ-CAD can also calculate the cross sectional area at every section. Using LXQ-CAD you can : 1. Easily specify Custom Design Paramaters to generate drawings for any structure 2. Draw sections at any interval - fixed or variable 3. Export drawings to DXF or DWG format 4. Paginate sections as per your preference 5. Quantity Output can be exported to EXCEL format
